EX-TRACK®CNC 10 × 5 ft + EX-TRAFIRE® 85HD Machine 26 ft — Portable CNC Plasma Cutting Package | Thermacut®

EX-TRACK®CNC 10 × 5 ft + EX-TRAFIRE® 85HD Machine 26 ft — Portable CNC Plasma Cutting Package | Thermacut®

$12,099.00 CAD $17,010.33 CAD

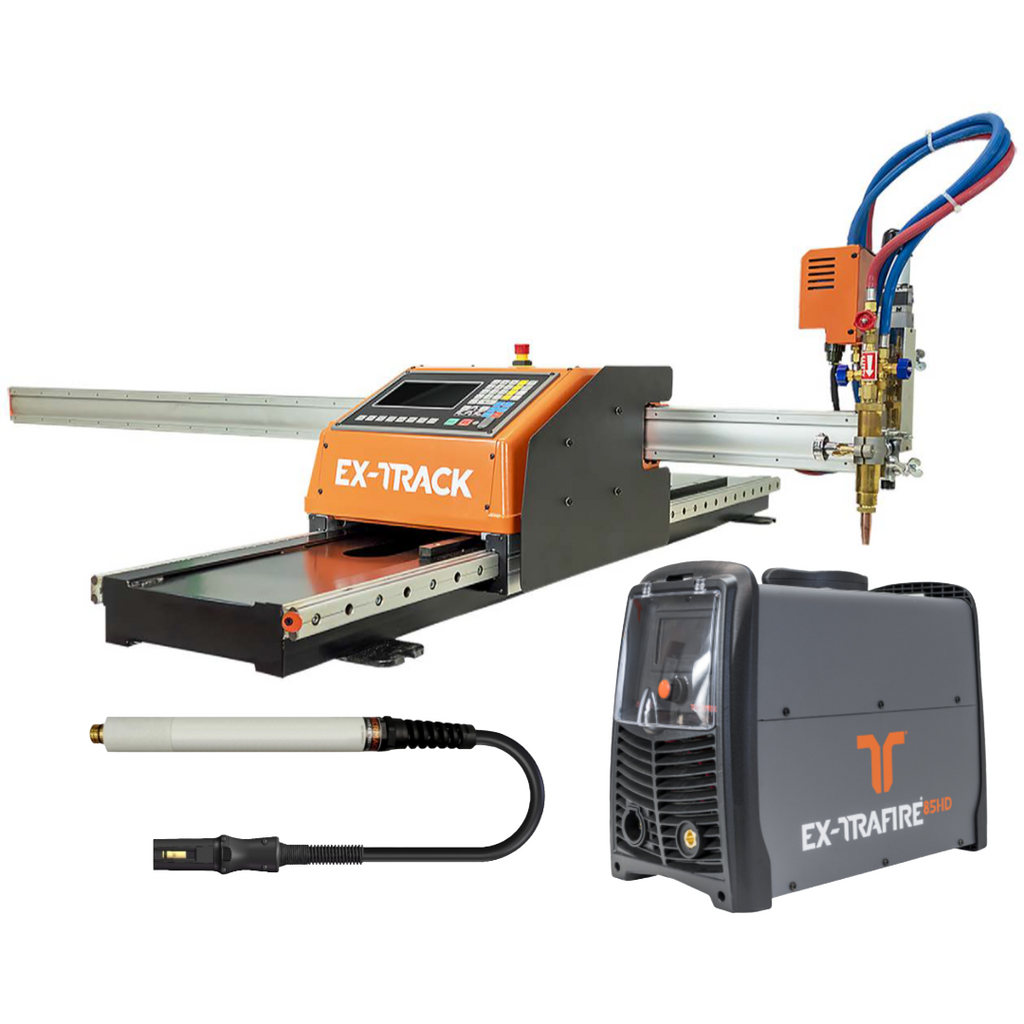

A complete portable CNC plasma package: the EX-TRACK®CNC 10 × 5 ft cutting system matched with the EX-TRAFIRE® 85HD machine plasma system and its FHT-EX®105TTM machine torch on a 26 ft (8 m) lead. Thermacut® designs the EX-TRACK®CNC to pair with EX-TRAFIRE® plasma sources through the CNC port — one supplier, one warranty, plug-and-play.

See the EX-TRACK®CNC cutting

What's in the package

  • EX-TRACK®CNC 10 × 5 ft (EX-0-707-002) — portable CNC gantry with arc voltage torch height control, 4 in motorized lifter, oxy-fuel torch and nesting software. Full EX-TRACK®CNC details.

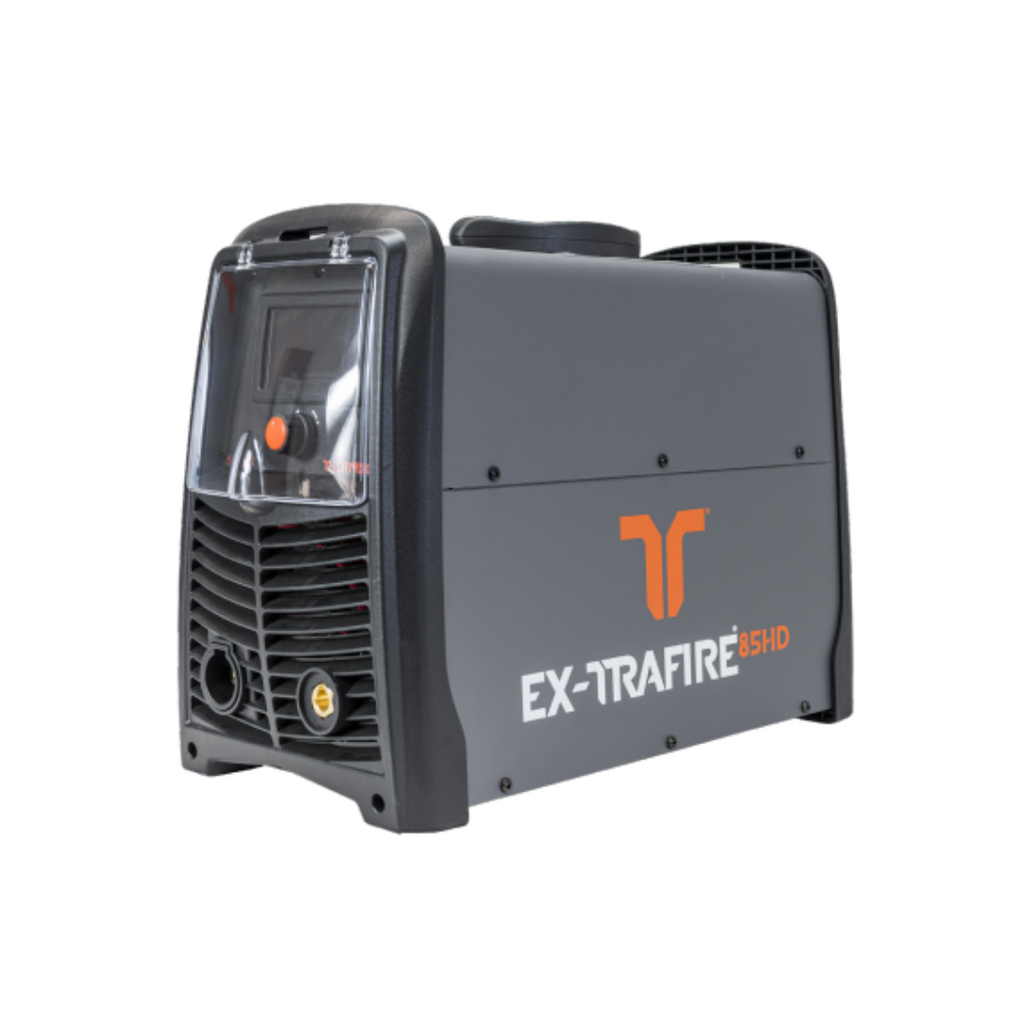

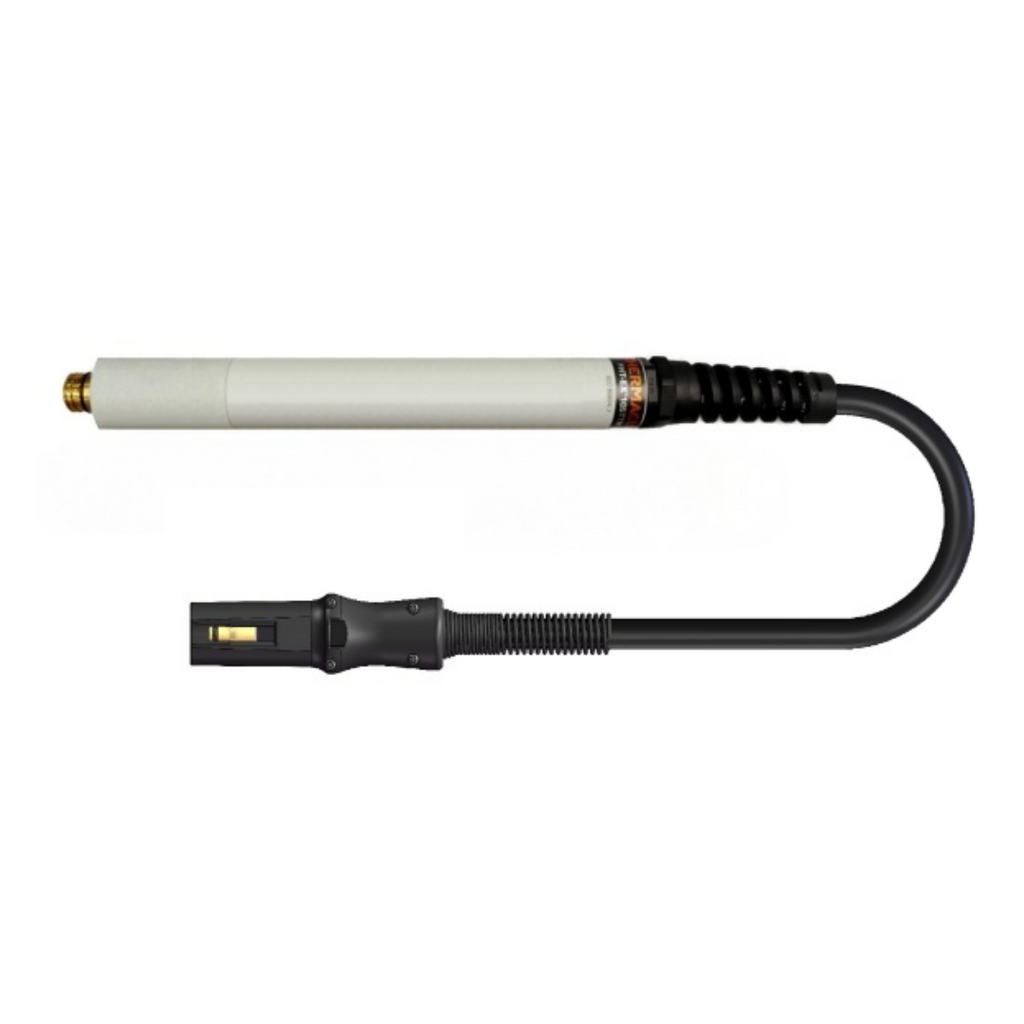

  • EX-TRAFIRE® 85HD Machine 26 ft (EX-4-013-014) — 85 A plasma system, 200–600 V single- or three-phase, CNC port, FHT-EX®105TTM machine torch on a 26 ft lead. Full EX-TRAFIRE® 85HD details.
  • CNC Interface Connection Lead, 9.8 ft (3 m) (EX-0-803-003) — pre-terminated lead from the EX-TRAFIRE® CNC port to the EX-TRACK®CNC controller. Lead details.

What it cuts

  • Plasma: 1-3/8 in recommended, 2 in severance, 1 in pierce on low-alloy steel (EX-TRAFIRE® 85HD ratings).
  • Oxy-fuel: up to 4 in with the included oxy-fuel torch.
  • Cutting area: 3,050 × 1,525 mm (10 × 5 ft).

EX-TRACK®CNC specifications

Cutting area 3,050 × 1,525 mm (10 × 5 ft)
Processes Plasma and oxy-fuel
Plasma cutting range Up to 35 mm (1-3/8 in), with a suitable plasma source
Oxy-fuel cutting range Up to 100 mm (4 in)
Torch height control Arc voltage height control
Vertical stroke 100 mm (4 in), motorized lifter
Max. positioning speed 3,000 mm/min (118 ipm)
Plasma interface Yes
Torch included Oxy-fuel
Nesting software Included
Input voltage 230 V or 120 V, 50/60 Hz, 180 W, 0.5 A
Packaging 2 boxes
Total weight 165 kg (364 lb)

A cutting table is not included — the EX-TRACK®CNC runs on your 10 × 5 ft table.
