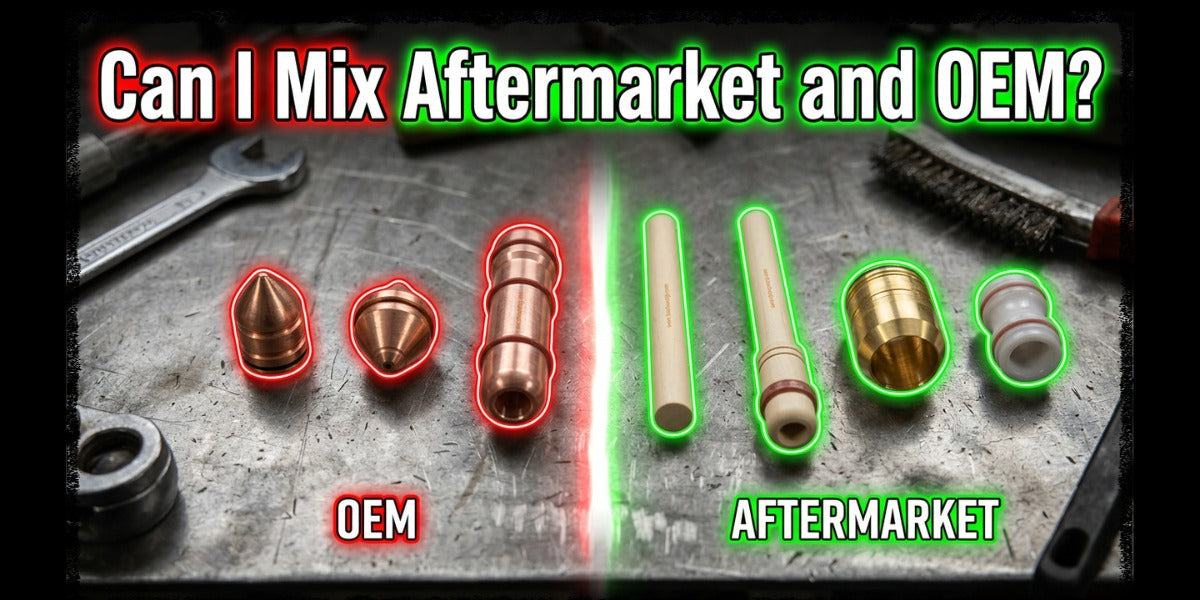

Here's a question worth settling before your next order: I've still got a box of OEM nozzles. Can I run them with Thermacut® electrodes?
The short answer is that for some parts the manufacturer says no, for most parts the answer is technically yes, and my recommendation for every stack is the same: run a complete Thermacut stack, and don't mix and match. Here's why.
Where the catalogue says no
Start with the parts where it isn't a judgment call. Thermacut's plasma catalogue marks specific parts that must be used together as a set. A few examples from the April 2026 edition:
- Powermax45® hand and machine torches: the shields and nozzles carry the note "must be used only as a set of shield and nozzle, this complete set is interchangeable and compatible with original parts."
- Powermax® 1000/1250/1650 (T-series torches): the long-life electrodes and swirl rings are marked to be used only as an electrode-and-swirl-ring set.
- ESAB® PT-600™: specific electrodes are marked for use only with a matching electrode holder.
Read the Powermax45 note carefully. The set is compatible with original parts: the Thermacut shield-and-nozzle pair works on the OEM torch. What you can't do is split the pair. The manufacturer designed those two parts to work together.
These notes apply to the parts they're printed beside, not to everything Thermacut makes. That's why you should read the catalogue notes for your torch instead of relying on a summary. A reseller listing or an AI answer can drop a note like this, or stretch it to parts it doesn't cover.
Where it fits, but I still wouldn't
For most parts there's no set note. Thermacut's catalogue describes its -UR parts as "fully interchangeable and compatible with original parts." In other words, the parts will fit.
So why do I still say don't mix them?
Because when something goes wrong, you can't tell what caused it.
Picture a stack with an OEM electrode, a Thermacut nozzle, an OEM swirl ring and a Thermacut shield. The nozzle double-arcs, or the electrode is gone after half the pierces you'd expect. Which part caused it? Was it the new nozzle, the old swirl ring or the seat between two parts from two factories? Nobody can answer that, whether it's you, us or the OEM.
What happens in practice is that the aftermarket part gets the blame nearly every time, whether it deserved it or not.
A complete stack takes that guesswork away. If a complete Thermacut stack underperforms, you know where to look and so do we. If you run one brand's complete stack and then the other's, you get a real comparison instead of an argument.
It points the same way as warranty
If you've read our warranty post, this will sound familiar. A machine maker generally has to show that an aftermarket part caused a failure before it holds that part against you. A mixed stack makes that question harder for everyone, including you. A clean, single-brand stack, together with a note of when you changed it, is the best evidence you can have, whichever way the question goes.
It also keeps your numbers honest
If you're keeping a cost-per-hour log (and you should be), a mixed stack spoils the data. You can't compare electrode life between brands when half the stack is from each. Change the complete stack, log it, and the numbers mean something.
What to do with the OEM parts you already have
Don't throw them out. Run them together as a complete OEM stack until they're used up, then switch to a complete Thermacut stack. Change everything at once and it's one clean changeover, with no guessing afterward.
The easy way to get a complete stack
This is the reason our finders sell complete stacks and not just loose parts. Pick your machine and how you cut, and the finder lists every part in the stack in assembly order, all Thermacut®, with one button to add the whole set. If you run a Duramax® torch on a Powermax®, start with the Powermax® consumable finder. For everything else, shop by machine.
This is my recommendation as an authorized Thermacut® distributor, based on how problems get diagnosed in real shops. Where the Thermacut catalogue marks parts as set-only, that's the manufacturer's instruction, quoted from its April 2026 plasma catalogue.
Hypertherm®, Powermax® and Duramax® are registered trademarks of Hypertherm. ESAB® is a registered trademark and PT-600™ a trademark of their owner. TorchandTip.com is not affiliated with or endorsed by them. OEM part numbers are used for reference only.
