The most expensive plasma consumable isn't the one you replace too early. It's the one you run too long — because a worn part rarely fails alone. It takes the parts around it, and sometimes the torch, with it.
The good news: air plasma consumables tell you they're done, if you know what to look at. You don't need an hour meter or a cut counter. On an air system — a Powermax®-style handheld or mechanized machine — the stack is simple enough that you can read every part by eye. You just need to know what a worn part looks like versus a fresh one, and pull it before it costs you more than the part.
Here's how to read each part in the stack, starting with the one that wears fastest.

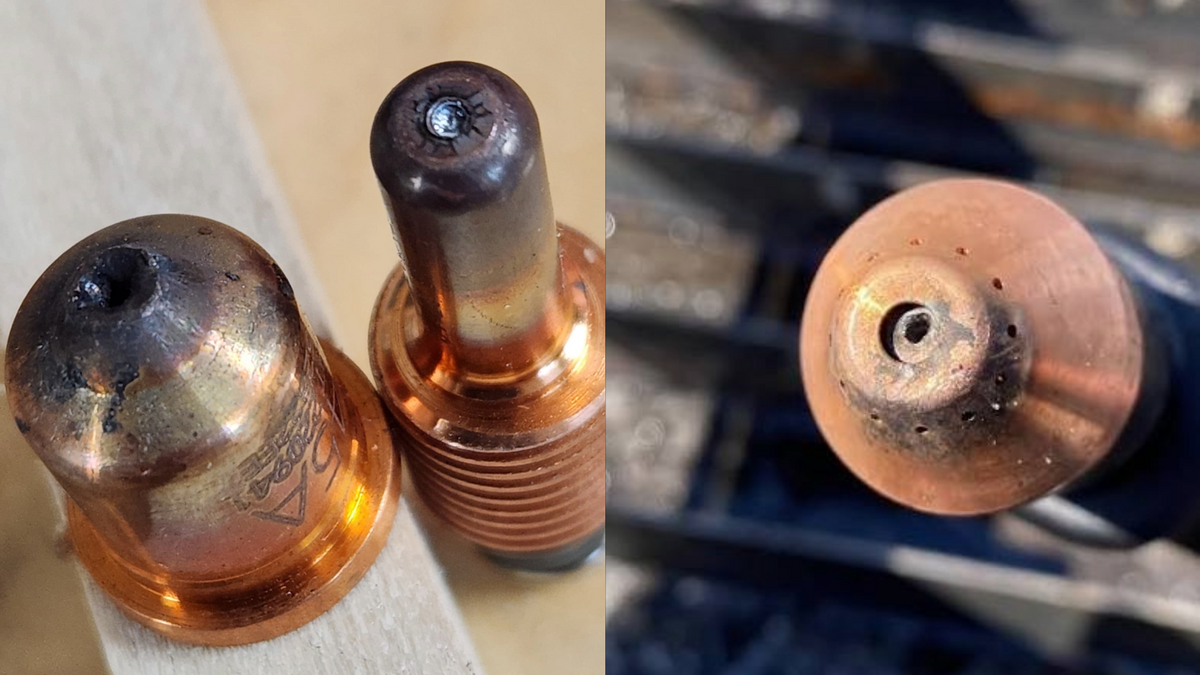

The electrode — the fastest-wearing part
The electrode does the hardest job in the torch and wears out first, so it's where you look first.
At the center of the electrode is a small emitter — hafnium, on an air plasma system — that erodes a little with every arc start. That's normal. Over its life, that erosion forms a pit in the center of the electrode face, and that pit gets deeper with use. The electrode is a wear item by design; the question is only when it's crossed the line.
The tell: pull the electrode and look at the center pit.
- A shallow, clean, centered pit = still good.
- A pit that's deep (anything over the thickness of a penny) , wide, or off-center = replace it.
Most air plasma systems specify a maximum pit depth (commonly around 0.030"–0.045" depending on the machine and amperage — check your service manual for the exact number). Past that limit, the emitter can't sustain a stable arc, and here's the part that costs money: a failed electrode doesn't just cut worse — when the emitter blows out, it can destroy the nozzle in the same instant, and send debris into the torch. Running an electrode a few starts too long to save a few dollars is how you turn a cheap part into a nozzle, an electrode, and sometimes a torch repair.
Don't run it to death. Measure the pit, replace on spec. They are like $6-7/ea, not worth the hassle in being overly frugal.
The nozzle — watch the hole
If the electrode is about the emitter, the nozzle is about the hole. Its only job is to constrict the arc into a tight, round column — and it wears from the inside out.
The tell: pull the nozzle and look straight down the orifice.
- A clean, round orifice = good.
- An orifice that's oval, enlarged, gouged, or ringed with wear = done.
As the orifice erodes out of round, the arc loses its focus, and your cut quality goes with it: growing bevel, more dross, a wandering cut edge, a wider kerf than you're used to. The maddening part is that these symptoms look exactly like a settings problem — so operators chase their amperage and speed when the real culprit is a nozzle that's quietly gone out of round.
The rule of thumb: if your cuts start degrading and you haven't changed a thing about your process, check the nozzle before you touch your settings. And on an air system, replace the electrode and nozzle as a pair when you can — they wear together, and a fresh nozzle on a spent electrode (or vice versa) won't restore your cut.
The swirl ring — the part nobody checks
The swirl ring is the most overlooked part in the torch, because it doesn't wear in an obvious, visible way like the electrode and nozzle do. But it shapes the entire arc.
Its job is to spin the plasma gas into a vortex that stabilizes and focuses the arc. It does that through a set of small, precisely-angled gas ports — and those ports clog, erode, and enlarge over time.
The tell: inspect it every time you change your stack.
- Cracks in the body.
- Clogged or enlarged gas ports (debris, or ports worn wider than they should be).
- Heat discoloration or melting around the gas holes.
Any of those = replace it. When the swirl ring's ports go, your arc loses its swirl and goes lazy — and your cut quality drops in a way that makes no sense if you're only looking at the nozzle and electrode. It's a cheap part that quietly controls an expensive outcome, so don't skip it just because it isn't the one that obviously wears.
The shield — and why drag and mechanized differ
The shield is the outermost part of the stack, and it's the one place where a handheld drag torch and a mechanized torch genuinely part ways — so it's worth knowing which one you're running.
On a handheld drag torch, the shield is built to be dragged right along the plate. It takes direct contact, heat, and spatter, and it protects the nozzle from the molten metal blowing back at it. Drag shields wear on the face and around the orifice from that constant contact.
On a mechanized torch, the shield is designed for a torch held at a set standoff above the plate (often with ohmic height sensing), not dragged on it. It sees the same heat and blowback but wears differently — and the two are not interchangeable. A drag shield and a machine shield for the same amperage are different parts.
The tell (both types):
- Molten metal buildup welded onto the face that won't clean off.
- A burned, enlarged, or out-of-round orifice — same problem as a worn nozzle, one layer out.
- Warping, cracking, or pitting on the face.
- On a drag shield, excessive wear on the contact face from riding the plate.
A worn shield lets spatter reach the nozzle and disrupts the gas flow around the arc, so it drags your cut quality down and shortens the nozzle's life at the same time. Match your replacement to your torch — drag shield for a hand torch, machine shield for a mechanized one — because a part that threads on isn't automatically the right part for how you cut.
The retaining cap — holds the whole stack true
The retaining cap doesn't cut anything — it holds the rest of the stack in alignment. Which means when it's compromised, nothing above it can do its job right, and the failure looks like a consumable problem when the root cause is the cap.
It takes heat and the mechanical load of holding the consumables in place, and it's the part most often damaged by handling rather than by cutting. (Note: on mechanized torches the retaining cap is often an ohmic-sensing cap — it carries the height-sensing contact, so a damaged one can throw off your standoff, not just your alignment.)
The tell: check the threads and sealing surfaces every few stack changes.
- Cross-threaded or damaged threads.
- Heat-warping or cracks.
- Sealing surfaces that no longer seat cleanly.
- A cap that's been over-tightened one too many times (gas-tight is enough — cranking on it warps and wears it).
A damaged cap throws off the alignment the nozzle and electrode depend on, which shows up as leaks, contamination, and premature wear on the parts above it. It's cheap to replace and expensive to ignore — because it can misalign, and destroy, the more expensive parts it holds.
The habit that saves you money
Notice the theme: the cut is the gauge. Rising dross, growing bevel, harder starts, arc instability, a wandering edge — those are your consumables telling you they're wearing out, regardless of any hour count. Learn to read the cut and inspect the stack when you change it, and you'll catch a worn part before it takes a good one down with it.
And when a part is done, replace it with one that matches the OEM spec — same geometry, same emitter, same fit, and the right part for how you cut (drag or mechanized) — so your fresh stack cuts like the day the machine was new, without paying genuine-part prices to get there.
Not sure which part your machine takes — or whether you need a drag or machine shield? Every consumable we carry lists the exact OEM number it crosses to. If you know your machine but not the part, use our guided consumable finder — pick your system, hand or machine torch, and amperage, and we'll match the complete stack, in assembly order, at a fraction of OEM cost.
A note on fitment: The consumables we carry are Thermacut® aftermarket parts engineered to match OEM performance — not genuine OEM parts, and not clones. Each lists the exact OEM number it crosses to so you can verify fitment before you buy. Thermacut® is an independent aftermarket brand; TorchandTip.com is not affiliated with, endorsed by, or sponsored by Hypertherm®, Lincoln Electric®, ESAB®, Kjellberg®, or any OEM. All brand names and trademarks are the property of their respective owners, used here for compatibility identification only.
