ABICOR Binzel® ABIMIG® A 415 LW Air-Cooled MIG Welding Torch, 400 A — Fixed Neck
ABICOR Binzel® ABIMIG® A 415 LW Air-Cooled MIG Welding Torch, 400 A — Fixed Neck
Price depends on cable length. Your exact price and ordering code show in the builder below.

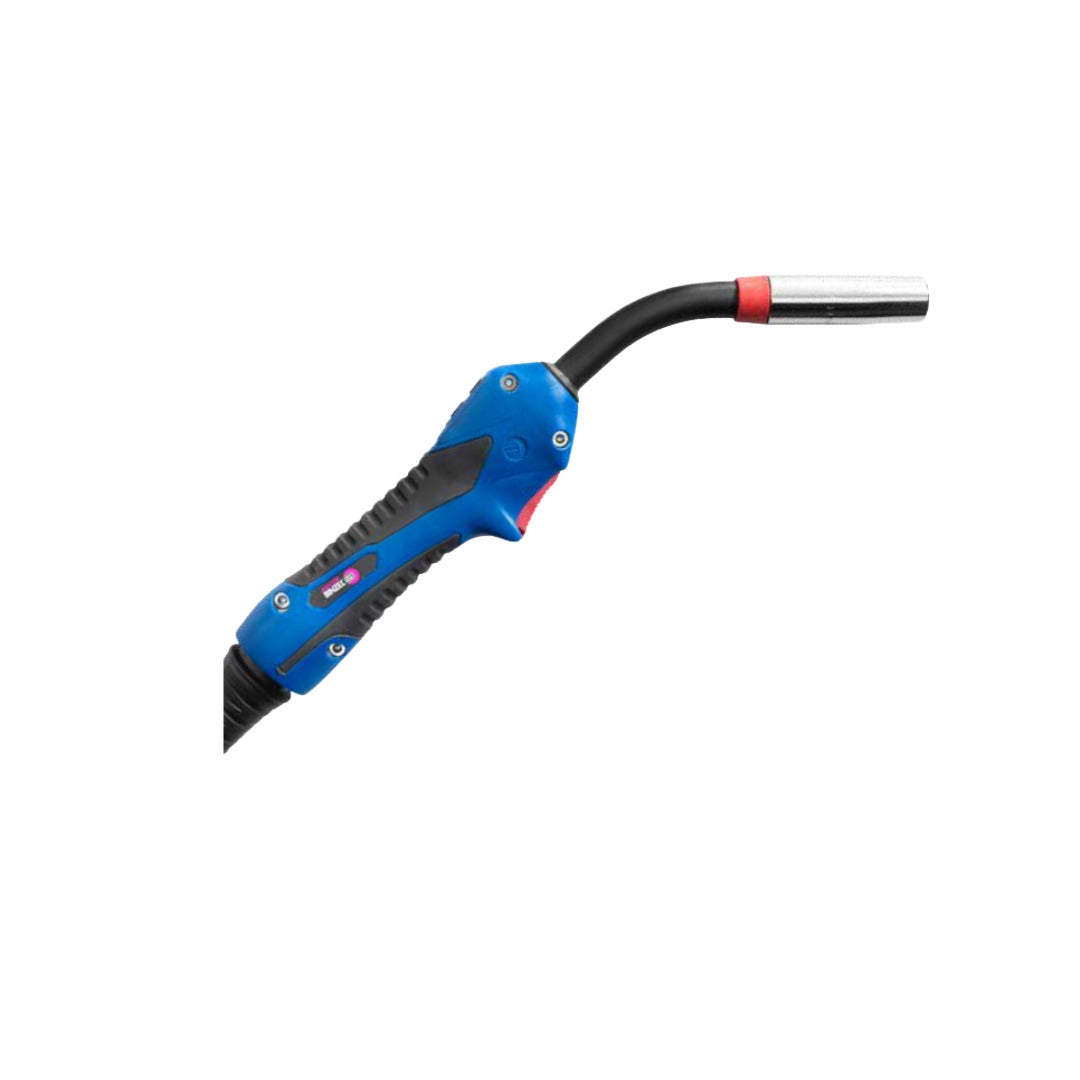

A fixed-neck torch built for the shift. The ABIMIG® A 415 LW is ABICOR Binzel®'s lightweight air-cooled MIG welding torch with a fixed 60° neck, rated 400 A on CO₂ and 355 A on mixed gas at 60% duty cycle. It ships complete with the connector for your machine: Miller®, Lincoln®, ESAB®, Tweco®, Hobart® or Fronius®.
Need a neck you can swap? See the ABIMIG® AT 415, with a rotating neck that changes in under a minute.
Why the ABIMIG® A

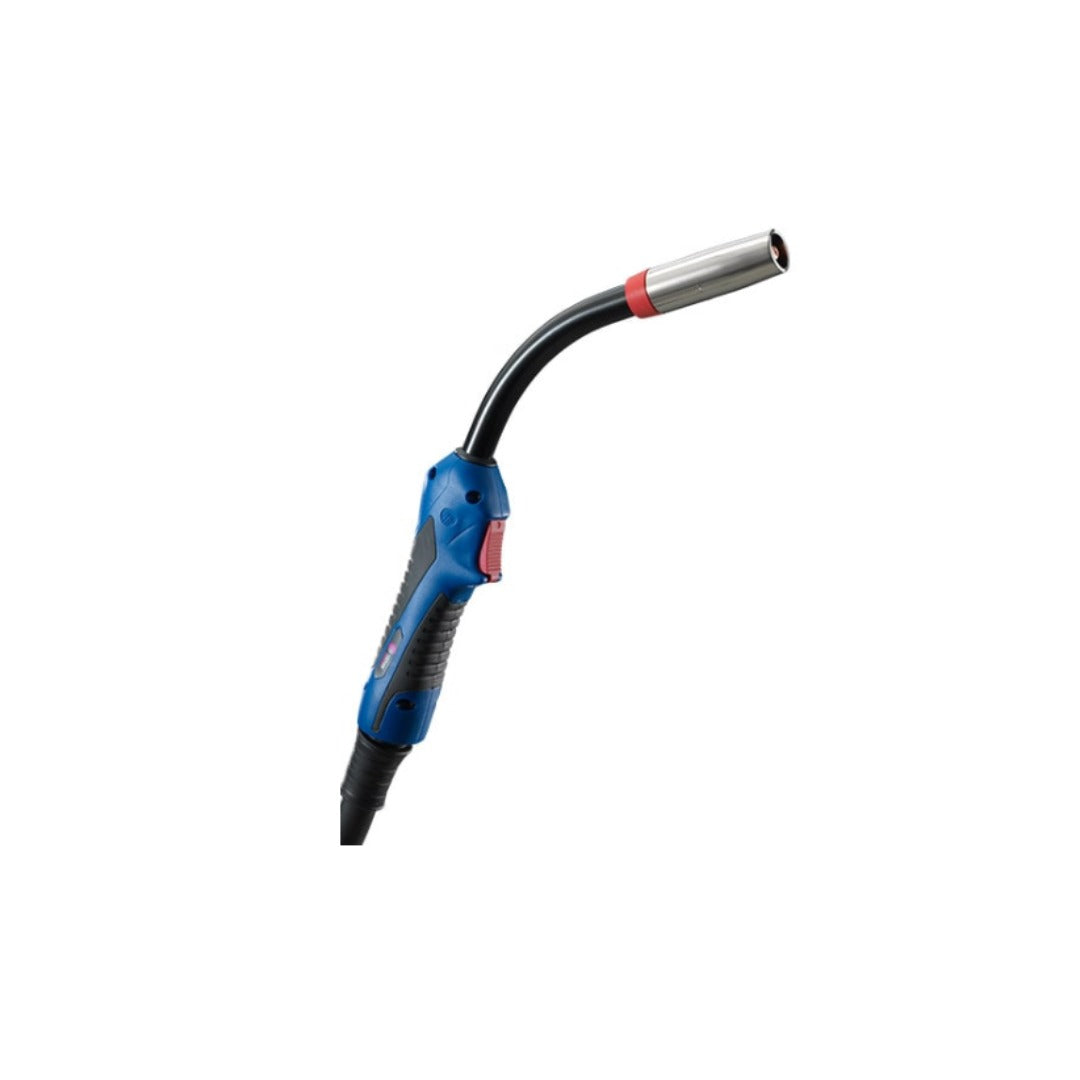

- Fixed neck, fewer parts. The A uses a one-piece 60° neck, so there is nothing to set or adjust. The same lightweight handle and consumables as the ABIMIG® AT, at a lower price.
- Built light. The LW ("lightweight") Bikox cable assembly and moulded handle keep the weight off your wrist, so the torch is easier to hold and steer through a full shift.
- A handle built for the wrist. The handle is contoured for the hand, and a ball-joint base gives the cable more range of motion than most MIG torch handles.
- Shares consumables with the ABIMIG® AT. Contact tips, tip holders, nozzles and liners are the same parts as the ABIMIG® AT, so one set of spares covers both torches.
- Made by ABICOR Binzel®. ABIMIG® is ABICOR Binzel's own torch line, designed and built by Binzel.
Specifications
| Rating (EN 60974-7) | 400 A CO₂ / 355 A mixed gas (M21) |
| Duty cycle | 60% |
| Wire size range | .035"–3/32" (0.9–2.4 mm) |
| Contact tip thread | M8 (M10 optional) |
| Cooling | Air-cooled |
| Neck | Fixed, 60° (neck assembly 767.0140) |
| Trigger | Short |
| Cable lengths | 10 ft, 15 ft, 20 ft, 25 ft |
Choose your machine
Pick the connection that matches the welder or wire feeder the torch plugs into.
| Option | Fits |
|---|---|
| Miller | Miller® wire feeders and welders with the standard Miller® direct connection |
| Lincoln (external gas) | Lincoln® machines with a separate (external) gas connection |
| Lincoln 10 series | Lincoln® 10-series wire feeders |
| Lincoln Power MIG | Lincoln® POWER MIG® welders |
| Lincoln Power Feed 74/84 | Lincoln® Power Feed® 74 and 84 wire feeders |
| ESAB / Tweco / Hobart | ESAB®, Tweco® and Hobart® machines with the Tweco®-style connection |
| Fronius / Euro | Fronius® machines, and any welder or feeder with a standard Euro connector |
Questions
What is the difference between the ABIMIG® A and AT?
The AT has a rotating neck that comes off in under a minute for a different angle or length. The A has a fixed 60° neck. Handle, cable and consumables are shared.
Will it fit my Fronius®?
Yes. Fronius® MIG systems use the open Euro connector. Choose Fronius / Euro.
Will it fit my ESAB®?
Yes. ESAB® machines use the Tweco® connection. Choose ESAB / Tweco / Hobart.
Is it ready to weld out of the box?
Yes. It ships as a complete torch with the liner for the wire size you choose, front-end consumables installed, and the connector for your machine.
What contact tips does it take?
The A 415 uses M8 thread contact tips as standard; heavy-duty M10 tips fit with the H4T-10-C tip holder.
Ships anywhere in Canada.
ABIMIG® and ABICOR Binzel® are trademarks of Alexander Binzel Schweisstechnik GmbH & Co. KG. TorchandTip.com is not affiliated with Illinois Tool Works Inc., The Lincoln Electric Company, ESAB or Fronius International GmbH. Miller®, Millermatic® and Hobart® are trademarks of Illinois Tool Works Inc. or its subsidiaries. Lincoln®, POWER MIG® and Power Feed® are trademarks of The Lincoln Electric Company. ESAB® and Tweco® are trademarks of ESAB. Fronius® is a trademark of Fronius International GmbH. These names identify the machines this torch connects to.
Build Your ABIMIG® MIG Welding Torch
Pick your machine, the amperage you weld at, the neck style, cable length and wire size. We show the matching torch and the consumables that fit it.
1. Your machine the welder or wire feeder the torch plugs into
2. Amperage pick the torch rated for how hard you weld
3. Neck style swappable or fixed
4. Cable length
5. Wire size
6. Gooseneck angle every welder has a favourite
The torch ships with the 60° standard gooseneck fitted. Pick a different angle and we add that gooseneck to your order. It swaps in under a minute and you keep the 60° as a spare. The 60° standard gooseneck is part of the torch and can’t be returned or exchanged on its own.
