ABICOR Binzel® ABIMIG® AT 255 LW Air-Cooled MIG Welding Torch, 230 A — Rotating Neck
ABICOR Binzel® ABIMIG® AT 255 LW Air-Cooled MIG Welding Torch, 230 A — Rotating Neck
Price depends on cable length. Your exact price and ordering code show in the builder below.

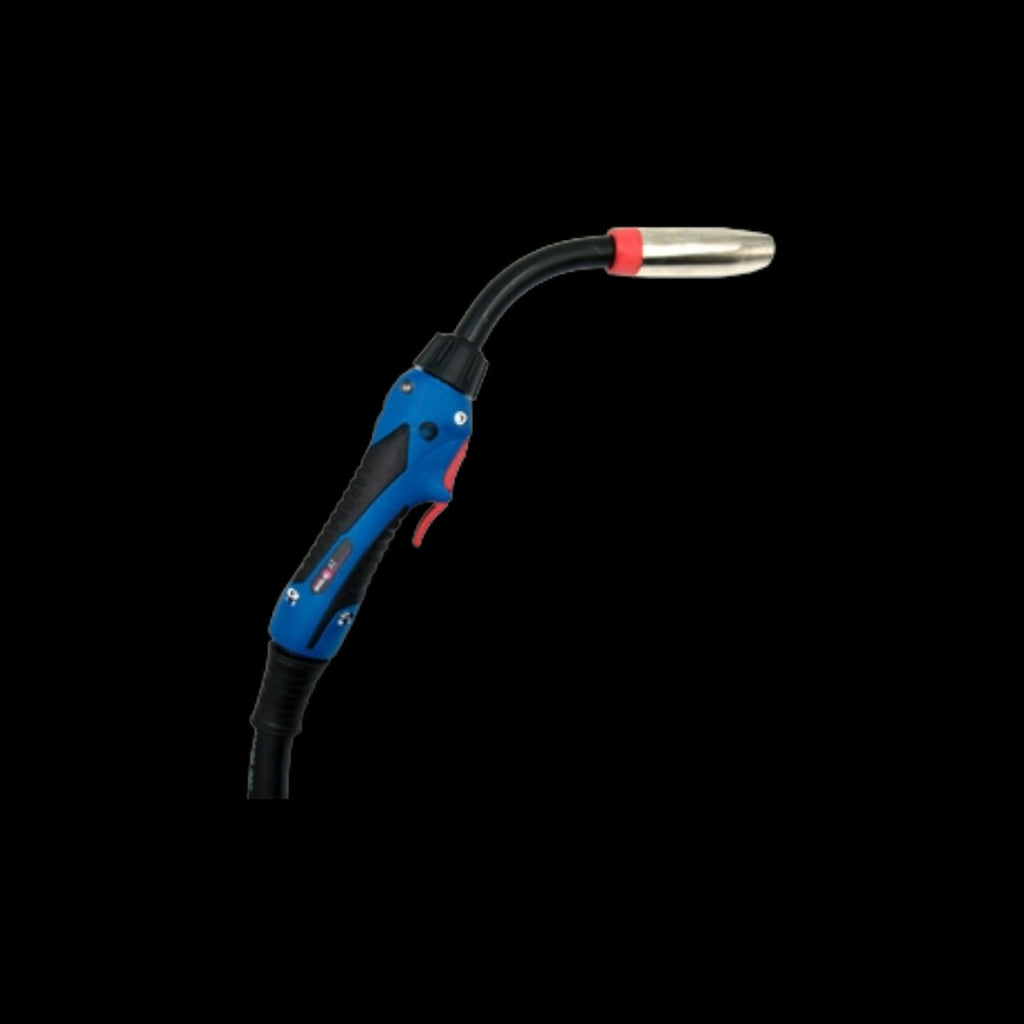

One torch for every machine in your shop. The ABIMIG® AT 255 LW is ABICOR Binzel®'s lightweight air-cooled MIG welding torch, rated 230 A on CO₂ and 220 A on mixed gas at 60% duty cycle. It ships complete with the connector for your machine: Miller®, Millermatic®, Lincoln®, ESAB®, Tweco®, Hobart® or Fronius®.
Don't need to swap necks? The ABIMIG® A 255 has a fixed 60° neck and costs less.
Why the ABIMIG® AT

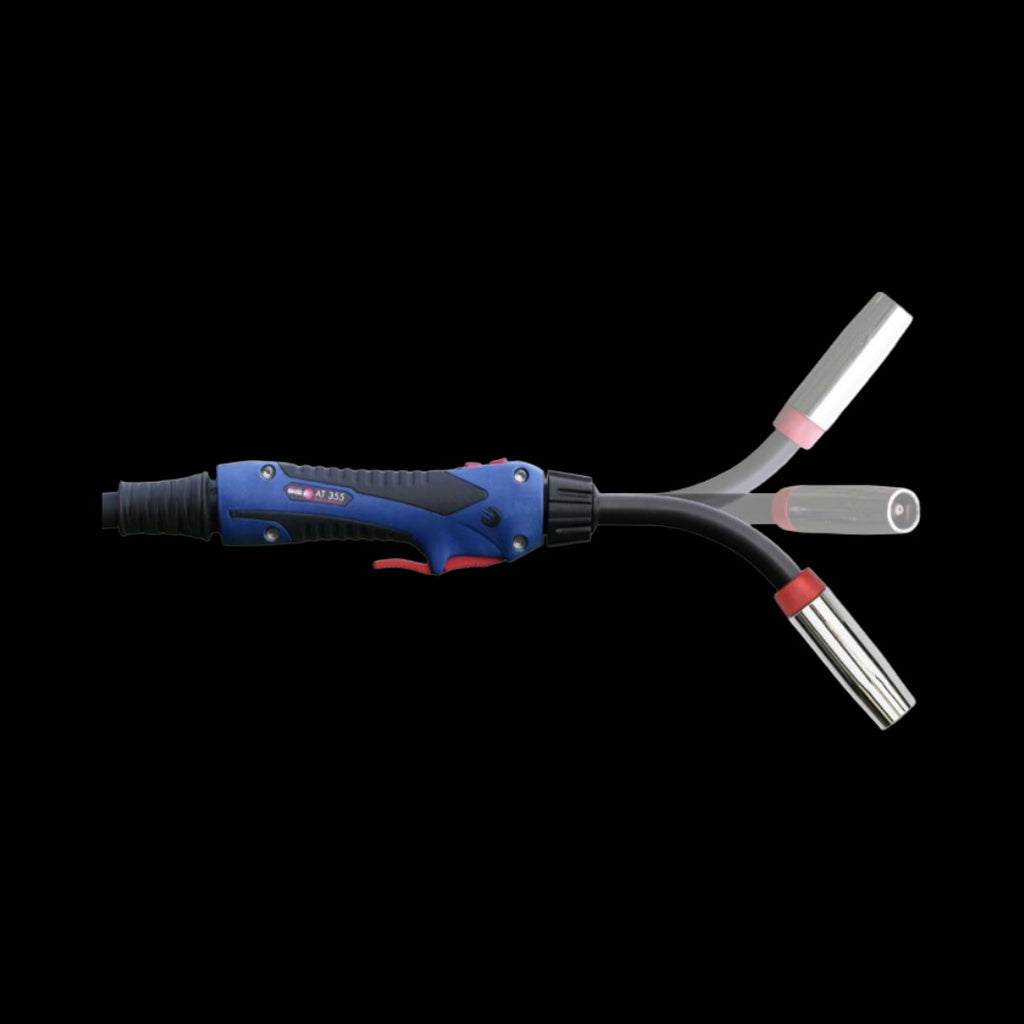

- Change the neck in under a minute. The AT's "T" interface lets the neck rotate to the angle the joint needs, or come off completely for a different shape. Binzel times an AT neck change at under 1 minute, against about 30 minutes on a standard MIG torch.
- Built light. The LW ("lightweight") cable assembly and moulded handle keep the weight off your wrist, so the torch is easier to hold and steer through a full shift.

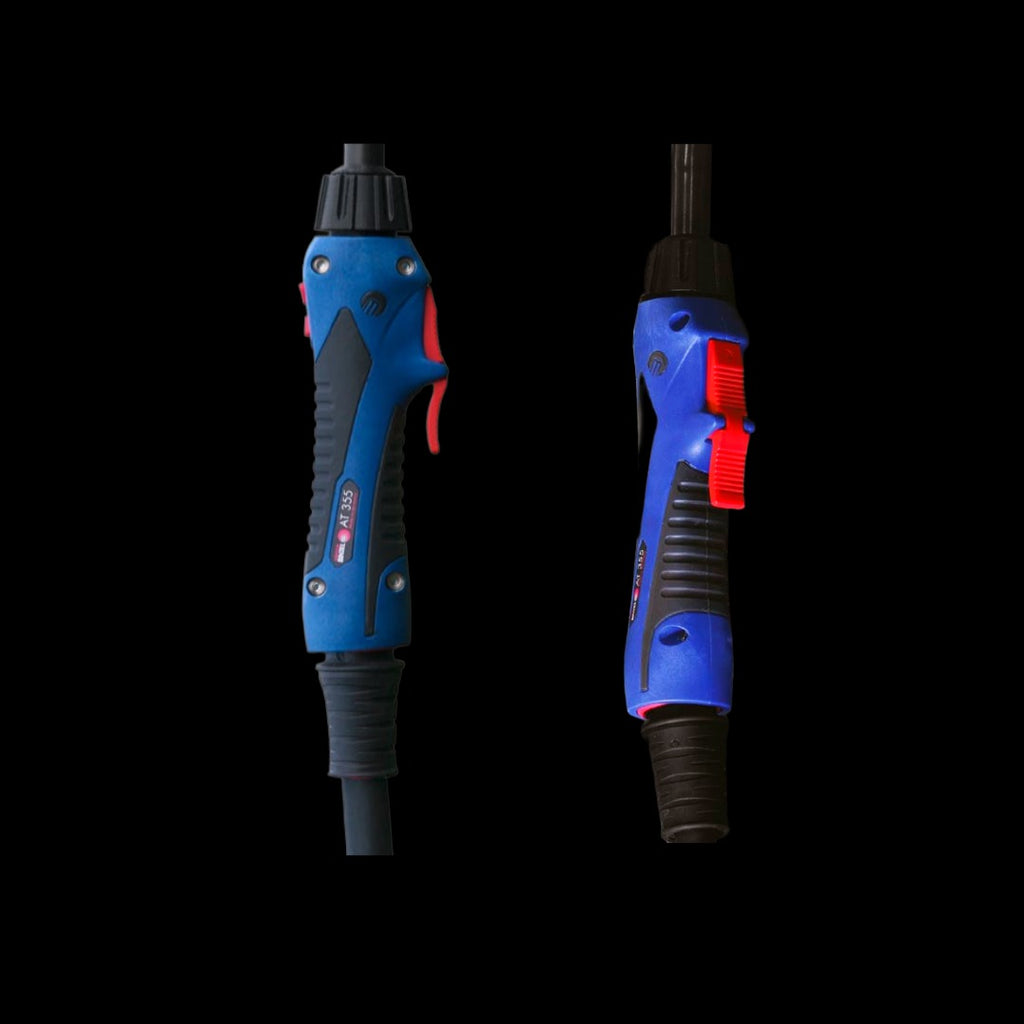

- A handle built for the wrist. A ball-joint base gives the cable more range of motion than most MIG torch handles, and the extended trigger stays easy to hold through long welds.
- Goosenecks for the job. Goosenecks are available in 22°, 45°, 60° and 180° bends, so one torch body covers the reach and angle each joint needs.
- Made by ABICOR Binzel®. ABIMIG® is ABICOR Binzel's own torch line, designed and built by Binzel, not a copy of anyone else's.
Specifications
| Rating (EN 60974-7) | 230 A CO₂ / 220 A mixed gas (M21) |
| Duty cycle | 60% |
| Wire size range | .030"–.045" (0.8–1.2 mm) |
| Contact tip thread | M6 |
| Cooling | Air-cooled |
| Neck | Rotating, interchangeable (60° standard) |
| Trigger | Extended |
| Cable lengths | 10 ft, 15 ft, 20 ft, 25 ft |
Choose your machine
Pick the connection that matches the welder or wire feeder the torch plugs into.
| Option | Fits |
|---|---|
| Miller | Miller® wire feeders and welders with the standard Miller® direct connection |
| Millermatic | Millermatic® all-in-one MIG welders |
| Lincoln (external gas) | Lincoln® machines with a separate (external) gas connection |
| Lincoln 10 series | Lincoln® 10-series wire feeders |
| Lincoln Power MIG | Lincoln® POWER MIG® welders |
| ESAB / Tweco / Hobart | ESAB®, Tweco® and Hobart® machines with the Tweco®-style connection |
| Fronius / Euro | Fronius® machines, and any welder or feeder with a standard Euro connector |
Questions
Will it fit my Fronius®?
Yes. Fronius® MIG systems use the open Euro connector. Choose Fronius / Euro.
Will it fit my ESAB®?
Yes. ESAB® machines use the Tweco® connection. Choose ESAB / Tweco / Hobart.
Is it ready to weld out of the box?
Yes. It ships as a complete torch with the liner for the wire size you choose, front-end consumables installed, and the connector for your machine.
What contact tips does it take?
The AT 255 uses M6 thread contact tips.
Ships anywhere in Canada.
ABIMIG® and ABICOR Binzel® are trademarks of Alexander Binzel Schweisstechnik GmbH & Co. KG. TorchandTip.com is not affiliated with Illinois Tool Works Inc., The Lincoln Electric Company, ESAB or Fronius International GmbH. Miller®, Millermatic®, Hobart® and Bernard® are trademarks of Illinois Tool Works Inc. or its subsidiaries. Lincoln®, POWER MIG® and Power Feed® are trademarks of The Lincoln Electric Company. ESAB® and Tweco® are trademarks of ESAB. Fronius® is a trademark of Fronius International GmbH. These names identify the machines this torch connects to.
Build Your ABIMIG® MIG Welding Torch
Pick your machine, the amperage you weld at, the neck style, cable length and wire size. We show the matching torch and the consumables that fit it.
1. Your machine the welder or wire feeder the torch plugs into
2. Amperage pick the torch rated for how hard you weld
3. Neck style swappable or fixed
4. Cable length
5. Wire size
6. Gooseneck angle every welder has a favourite
The torch ships with the 60° standard gooseneck fitted. Pick a different angle and we add that gooseneck to your order. It swaps in under a minute and you keep the 60° as a spare. The 60° standard gooseneck is part of the torch and can’t be returned or exchanged on its own.
