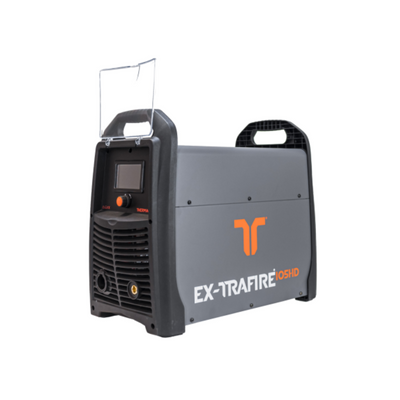

The EX-TRAFIRE® 105HD is the production workhorse — the same multi-voltage flexibility as the 85HD with 20 more amps, a 20 lbs/hr gouging rate and 100% duty at 94 A. This is the hand-torch system: a complete, ready-to-cut package built around Thermacut®'s award-winning FHT-EX®105TTH torch on a 50 ft (15 m) lead — configured for handheld cutting, gouging and marking.
Every EX-TRAFIRE® HD runs four processes from one machine: cutting, grid (expanded-metal) cutting, gouging and marking. You are not buying a cutter and then buying a marker — the machine identifies the gas, sets pilot current and pressure itself, and compensates for pressure drops as you cut. Fewer operator variables, more repeatable edges.
Why shops buy this machine
- 100% duty cycle at 94 A on 460–575 V three-phase. Duty cycle is where cheap plasma dies. This one is rated for continuous production, not a 40-second burst and a cool-down.
- One machine, any shop power. Runs 200–600 V, single- or three-phase, 50/60 Hz. The same unit that works off 240 V single-phase in a small fab shop works off 600 V three-phase in a plant — which matters if you move it, rent it out, or don't yet know what service the next job site has.
- 1-3/8" recommended capacity, 2" severance, 1" pierce on low-alloy steel, plus 20 lbs/hr gouging removal.
- FHT-EX®105TTH torch, tool-free consumable changes. A design-award-winning torch on Thermacut®'s Torch Connection System (TCS) — swap the whole torch, or just the consumables, without tools and without a service call.
- Industry 4.0 ready. CNC port fitted as standard; optional CAN / RS-485 / RS-422 bus interface if you later mechanize.
- Cuts on air, nitrogen or argon. Air for everyday mild steel; nitrogen for stainless and aluminium; argon with the optional marking kit for fine, smooth marking below 20 A.
- Consumables you can actually afford to run. Thermacut® builds the machine and the consumables — so the running cost stays low for the life of the machine, and you order the parts from the same place you bought the system.
Specifications
| Cutting current | 20–105 A |
| Output amperage — single phase | 20–85 A |
| Output amperage — three phase | 20–105 A |
| Operating modes | Cutting · Grid cutting · Gouging · Marking |
| Recommended cutting capacity* | 1-3/8" |
| Severance cutting capacity* | 2" |
| Piercing capacity* | 1" |
| Gouging removal rate | 20 lbs/hr |
| Duty cycle @ 104 °F | 40% @ 85 A / 100% @ 54 A (1 × 230 V) 55% @ 105 A / 100% @ 77 A (3 × 208 V) 80% @ 105 A / 100% @ 94 A (3 × 460–575 V) |
| Input voltage | 1 × 200–240 V / 3 × 208–575 V ± 15% |
| Frequency | 50/60 Hz |
| Rated output voltage | 160 V DC |
| Plasma gas | Compressed air / nitrogen / argon** |
| Air flow cut pressure | 75 PSI (recommended supply 90–145 PSI) |
| Torch gas flow | 156 l/min at 4.8 bar |
| Torch | FHT-EX®105TTH, 50 ft (15 m) lead |
| CNC interface | CNC port standard (STD EQUIPPED). CAN / RS-485 / RS-422 optional. |
| Protection level | IP23S |
| Insulation class | F |
| Certification | CSA |
| Power supply dimensions (L × W × H) | 24" × 20" × 12" |
| Power supply weight | 96 lbs |
| Thermacut® part number | EX-5-010-053 |
* Values for low-alloy steel (e.g. MS S235JR). ** Argon is for use with the optional fine-marking kit only.
What's in the box
- EX-TRAFIRE® 105HD power supply (multi-voltage 200–600 V)
- FHT-EX®105TTH hand torch with 50 ft (15 m) lead and TCS13 connection
- Hand torch starter consumable kit — 4 electrodes, 4 nozzles, 4 shields, swirl ring and torch-body O-ring
- Work lead with clamp
- Operator's manual
Consumables and support
This system runs FHT-EX®105TT consumables — electrodes, nozzles, retaining caps, swirl rings, shields, gouging and marking sets. We supply them, so the machine you buy here is the machine we keep running. Not sure which amperage set you need? Email office@torchandtip.com and we will build the reorder list for your cutting.
